ViewSonic 5000 Lumen WXGA Laser DLP Projector, White - Certified Refurbished
With the ViewSonic® LS740W laser projector, you can light up every room with brilliant presentations. Featuring the latest laser phosphor technology, the LS740W projector delivers 5,000 ANSI lumens of brightness to ensure crisp images even in rooms with ambient lighting. Enjoy a maintenance-free projection experience without having to deal with complicated lamp replacements. This eco-friendly, high brightness projection solution features a compact design for easier transportation. Experience screen sizes up to 300” in 1080p Full HD resolution for show-stopping images designed to fill up boardrooms, lecture halls, auditoriums and other public spaces. The LS740W laser projector comes loaded with features like 1.3x optical zoom, H/V keystone, 4 corner adjustment, 360° projection and portrait mode for easy setup and versatile applications.
Features
- High Brightness Laser Projector: WXGA (1280x800p) resolution with a 1.2-1.5 throw ratio and 5,000 ANSI lumens for clear, detailed images in any space
- Golf Mode for Realistic Simulation: Designed for immersive play, Golf Mode supports major golf simulators for lifelike play on world-class virtual courses

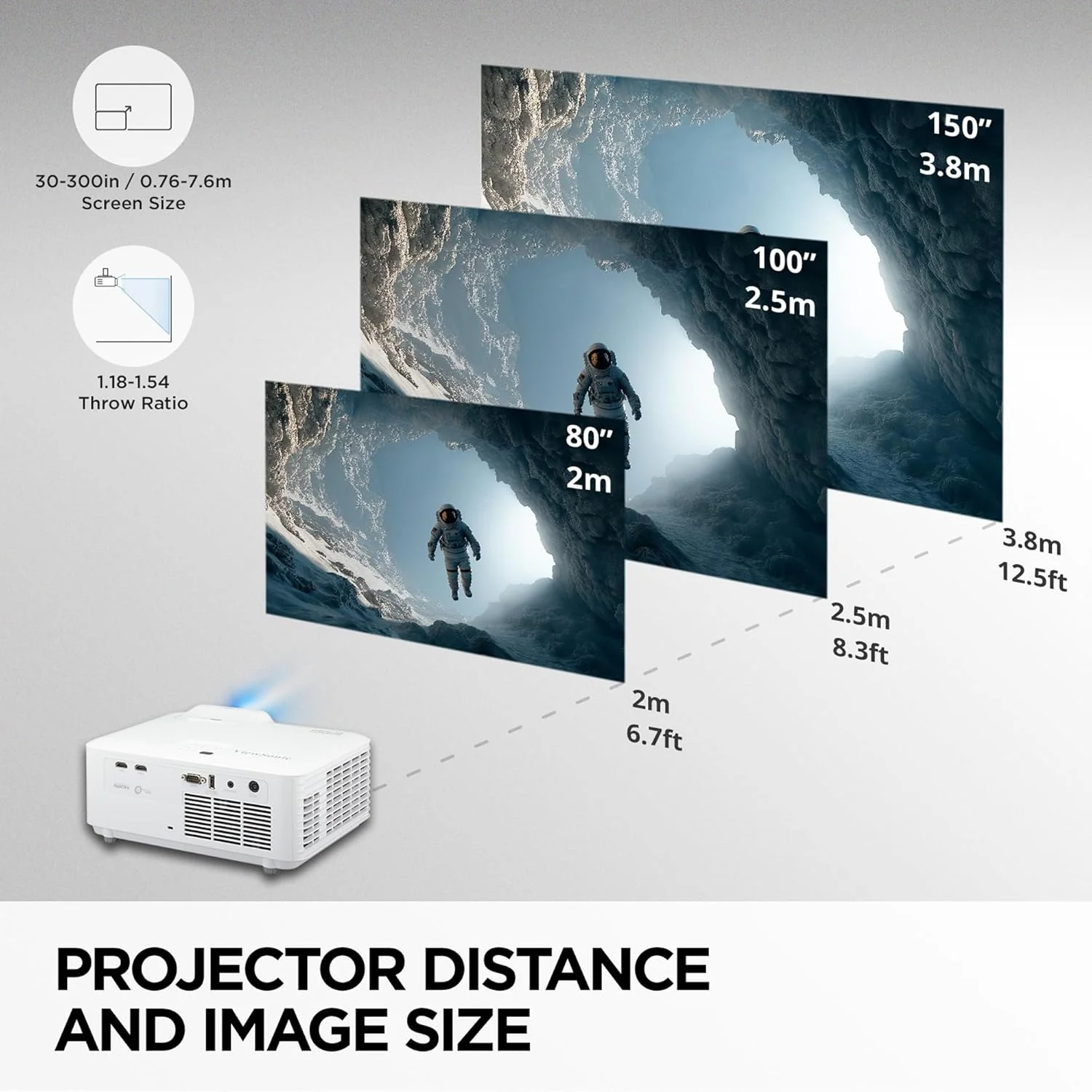

- Large Screen Projection: Projects screen sizes from 80" to 150" with a throw distance of 6.7 ft - 12.5 ft; displays a 100" image from 8.3 ft
- Easy Setup & Image Adjustment: Features 1.3x optical zoom, 0.8x-2.0x digital zoom, H/V keystone, 360-degree projection, portrait mode, and 4-corner adjustment
- Instant Power On/Off: Enables quick startup and shutdown with optional settings for automatic power control
Specifications
|
Image Display
|
|
| Display System |
1-Chip 0.65" DMD DLP
|
| Native Resolution |
1280 x 800
|
| Supported Resolutions |
Maximum: 1920 x 1200 @ 60 Hz
|
| Maximum Brightness |
5000 Lumens (ANSI)
|
| Offset |
124% ± 10%
|
| Aspect Ratio |
Native: 16:10
|
| Dynamic Contrast Ratio |
3,000,000:1
|
| DLP Link 3D |
Yes
|
| Supported 3D Formats |
Frame Sequential (up to 1080p)
|
| Side by Side (up to 1080i) | |
| Top Bottom (up to 1080p) | |
| Color Depth |
10-Bit (1.07 Billion Colors)
|
| Scan |
Horizontal: 15 to 102 kHz
|
| Vertical: 24 to 120 Hz | |
| Latency |
49.5 ms
|
|
Lens
|
|
| Includes Lens |
Yes
|
| Focus |
Manual
|
| Aperture |
f/2.43 to 2.78
|
| Focal Length |
16.9 to 21.61mm
|
| Optical Zoom |
Manual: 1.3x
|
| Throw Ratio |
1.18 to 1.54:1 (100" Screen Size @ 8.33' / 2.54 m)
|
| Projection Size |
30 to 300" / .8 to 7.6 m
|
|
Features
|
|
| Keystone Correction |
Manual to Vertical: ± 30°
|
| Manual to Horizontal: ± 30° | |
| HDR Support |
No,
|
| Digital Zoom |
2x
|
| Multi-Input Support (PIP/PBP) |
Not Specified by Manufacturer
|
| Ceiling Mountable |
Yes
|
| Rear Screen Projection |
Yes
|
| Built-In Speaker |
Yes (Mono)
|
| Speaker Power |
15 W
|
| Projection Tilt Option |
Yes
|
|
Input/Output Connectors
|
|
| Inputs/Outputs |
2x HDMI 1.4 Audio, Video Input
|
| 1x 1/8" / 3.5 mm Mini Audio Output | |
| 1x USB-A Power, Service Output | |
| 1x DE-9/DB-9 (RS-232) Control Input | |
| HDCP Support |
Yes, Version 1.4
|
| Media/Memory Card Slot |
No
|
|
Hardware
|
|
| Mobile App Compatible |
No
|
| Wireless LAN / Wi-Fi |
No
|
| Bluetooth |
No
|
|
General
|
|
| Light Source |
Laser Phosphor
|
| Expected Lamp Life |
Full Brightness: 20,000 Hours
|
| Low Brightness: 30,000 Hours | |
| Security |
Cable Lock Slot
|
| Password Protection | |
| Supported Languages |
Arabic
|
| Czech | |
| Dutch | |
| English | |
| Finnish | |
| French | |
| German | |
| Greek | |
| Indonesian | |
| Italian | |
| Japanese | |
| Korean | |
| Norwegian | |
| Polish | |
| Portuguese | |
| Russian | |
| Simplified Chinese | |
| Spanish | |
| Swedish | |
| Thai | |
| Traditional Chinese | |
| Turkish | |
| Vietnamese | |
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Consumption |
Medium Brightness: 210 W
|
| Standby Mode (Lamp Off): < 0.5 W | |
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
| Operating Humidity |
10 to 80%
|
| Storage Humidity |
0 to 90% (Non-Condensing)
|
| Dimensions (W x H x D) |
11.3 x 5.1 x 8.5" / 286.0 x 129.0 x 216.0 mm
|
| Weight |
6.6 lb / 3 kg
|
|
Packaging Info
|
|
| Package Weight |
9.735 lb
|
| Box Dimensions (LxWxH) |
16 x 10.8 x 6.1 inches
|
Original: $799.99
-70%$799.99
$240.00Product Information
